When my son wanted me to buy him a toy robot I asked him if he would like to build one with me instead, he was so interested so I told him that it will be a car robot with two motorized wheels controlled from the phone over bluetooth and he needs to sketch the design then build it using Lego blocks.

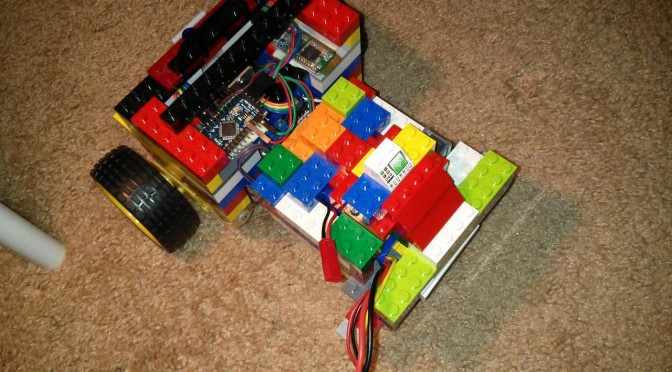

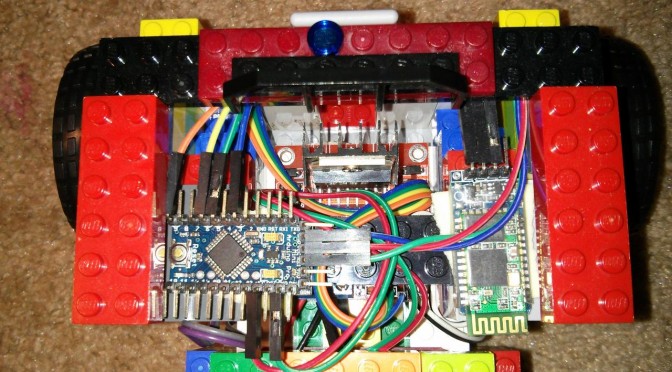

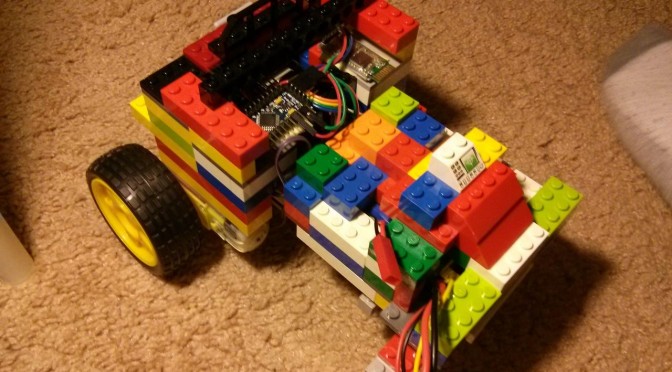

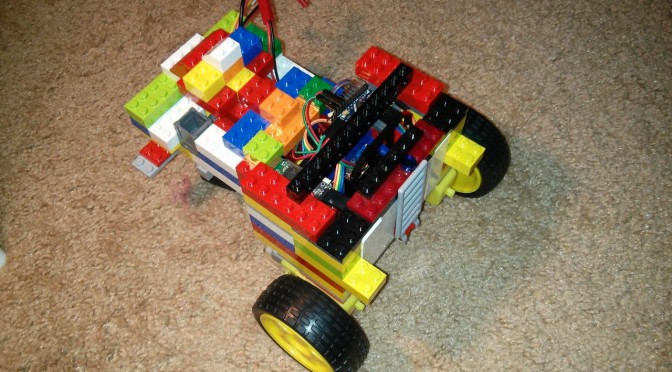

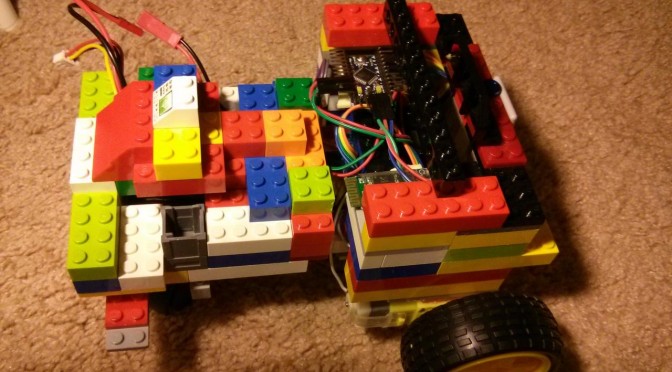

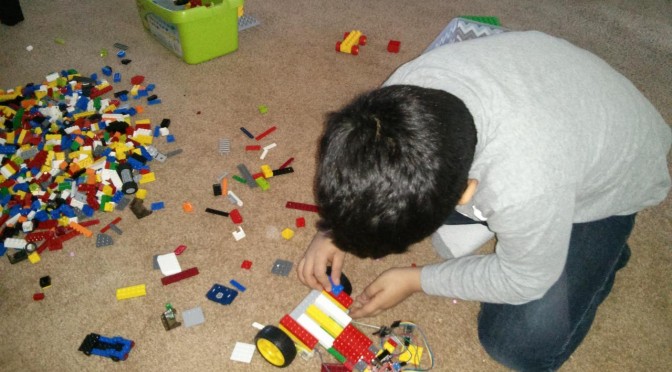

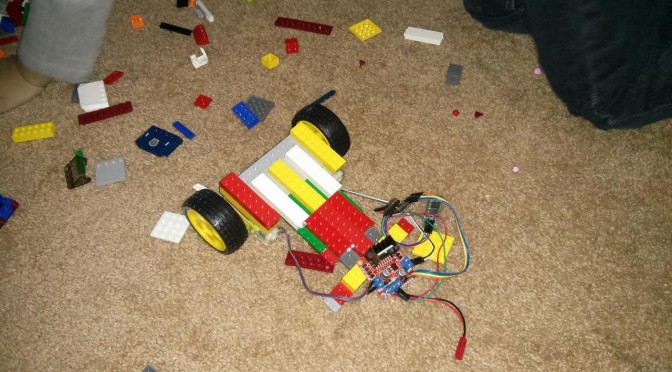

IMG_20150110_115340 IMG_20150110_115358 IMG_20150110_115409IMG_20150301_184414 IMG_20150301_184527 IMG_20150301_184516 IMG_20150301_184501 IMG_20150301_184432 device-2015-03-07-210547

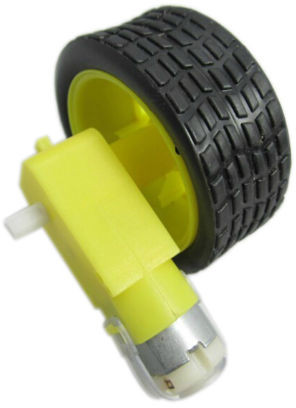

While he was busy with the sketches I started looking for parts, so I went to eBay and found these wheels

They come in two speeds, I ordered the slower one since it has more torque.

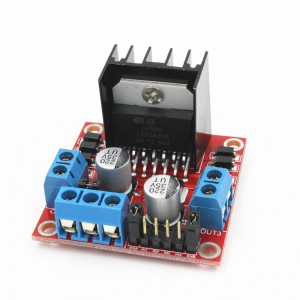

These wheel will need something to control them since the Arduino micro-controller is not strong enough to drive them with enough current so wanted to build an H-bridge using transistors (which I have already) but I found  a module based on the L298 chip  which is very cheap and has a voltage regulator too, awesome.

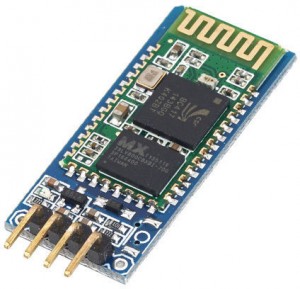

Next was the bluetooth module, and I went for the HC-06 which is easy to use and also cheap.

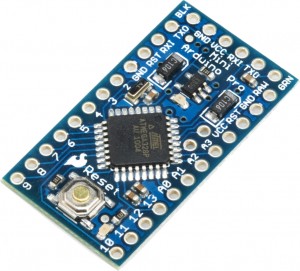

Bluetooth HC06-2And finally is of course the Arduino board, I got the Arduino Pro Mini for its small size and low cost.

arduino_miniEven though I actually used the Arduino Uno for the development since it is much easier to upload the code and fix mistakes.

I got them all from eBay with the cheapest price I can get so some took about a month to arrive and I wasn’t in a hurry:

2x Car Robot Wheels: $6.00
L298N Dual H Bridge: $3.00
HC-06 Bluetooth Module: $4.00
Arduino Pro Mini: $2.60
40pin Dupont Wires: $1.50
Total = about $17

You will also need an Android Phone or tablet, any with Android 3.0 and up should do. Lego blocks or anything to use for the car body.

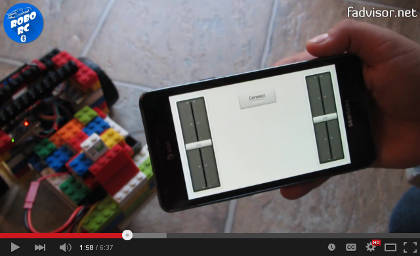

Here is a video we made showing how to use the app and explaining the car we built and its main parts:

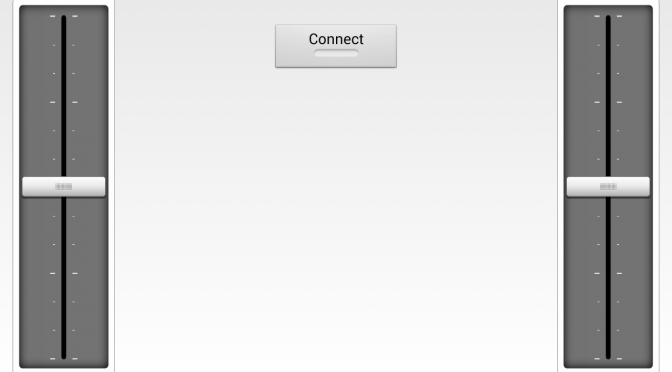

To get the Andriod app click on the Google play icon below:

for the Android source code click here
and for the Arduino code click here
