Nexus 6P Headset Volume down button fix

Nexus 4 owners, and I am one of them, were disappointed to find out that it only support 1 button headset control, so no buttons for Vol+ and Vol-. When I bought the Nexus 6P I was hoping it will have support for 3 buttons control. After I got the phone I tested it with my Samsung headset, the play/pause button and the Volume Up button work, however, Volume Down didn’t!!!

I was hoping it is a faulty headset since that I can replace easily, but if it was a design mistake in the Nexus then it might be a problem forever. Luckily and after a quick Google search I found a post on reddit from someone asking if the Nexus 6P has support for 3 buttons headset. The answer was yes, so that is a good news, but one of the replies was from a reddit user “buddhra” who was having a similar problem as mine and did a further test to find out that the Nexus 6P acceptable resistance range for the Vol- doesn’t stretch to the maximum range which the Android specs allows.

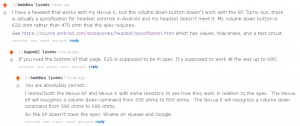

Here is a snapshot for part of the post:

Reddit Nexus 6P 3 button headset support problemSo I tested mine and found the resistance of the third button (Vol-) to be 630 ohms, which is within the Android specs but seems out of what the Nexus 6P can recognize.  Not sure if it is a software or a hardware problem in the Nexus 6P which I won’t be able to fix easily, but I know that I can instead fix the headset itself to give the readings that the Nexus 6P expects.

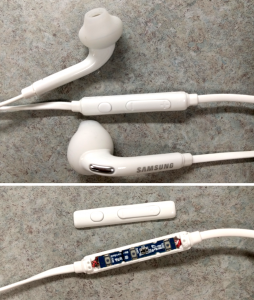

So I opened up the headset control, it is very small and was glued together, but using a thin blade i managed to open it up:

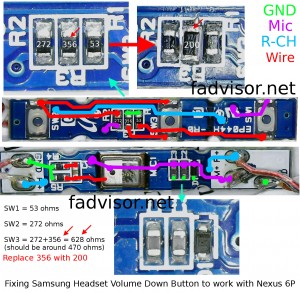

Opening up Samsung headset controlZooming into the circuit board and tracing the PCB wires I figured how the resistors were connected and managed to replace one of the resistors (R3 = 356 ohms) with one of a smaller value (200 ohms) and it now works. (The resistors used in the board are size 402, however, I had one with size 603 which is a little bigger but there was enough space to fit it without any problems):

Samsung Headset Fix for Nexus 6PAll Android headset controls follow a similar way to provide the needed resistance, so your control board might differ but it should be similar.

2
Leave a Reply

avatar
2 Comment threads
0 Thread replies
0 Followers

Most reacted comment
Hottest comment thread
2 Comment authors
marknogradig Recent comment authors

This site uses Akismet to reduce spam. Learn how your comment data is processed.

  Subscribe
newest oldest
Notify of
nogradig
Guest
nogradig

hi. thanks for this fix. i have Samsung EO-EG920B headset and Nexus 5. I replaced the resistor and it works. You are the hero of the day. 🙂

mark
Guest
mark

My old Samsung and HTC headsets both had 220 ohms resistors, so I took one and did this modification. Now my new Samsung headset works fine with Nexus 6P (and still with Samsung). Thanks!
